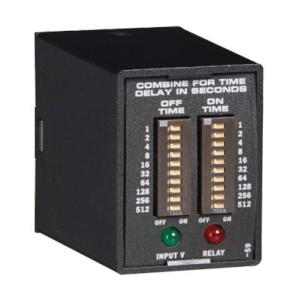

LITTELFUSE
#TDR4A11
Time Delay Relay, 0.1 - 102.3 sec Off-Time, 10A, DPDT
SKU
#
07945899980
Manufacturer Series:
TDR
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Repeat Cycle Timing Relay
Mounting:
Plug-In Socket
Terminals:
8-Pin Octal
Operation:
On Delay, Off Delay
Contacts:
DPDT
Amps:
10A
Coil Volts:
120V AC
Range Off-Time:
0.1 - 102.3 sec
Range On-Time:
0.1 - 102.3 sec
Timing Adjustment:
DIP Switch
Description
The TDR series of time-delay relays are comprised of digital circuitry and an isolated, 10A relay output. The on and off delays are selected by means of two, ten position binary switches, which allow the setting of the desired delay to be precise every time.
