SIEMENS
#7PV15401AW30

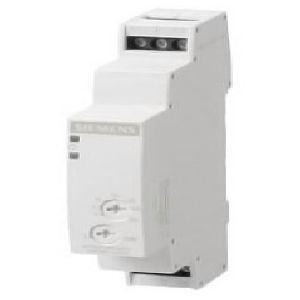

Sirius Timing Relay, 0.05 - 100 sec, 300V AC, 3A, 12-240V AC/DC Coil, Off Delay
SKU
#
04089255274
Manufacturer Series:
7PV1
Specifications
Country of Origin:
Czech Republic - Subject to change
Type:
Timing Relay
Mounting:
DIN Rail
Terminals:
Screw
Operation:
Off Delay
Contacts:
1 CO
Voltage:
300V AC
Amps:
3A
Coil Volts:
12-240V AC/DC
Timing Range:
0.05 - 100 sec
Description
Additional Info: Operating Temperature: -13 to 131 deg F(-25 to 55 deg C), Frequency: 50/60 Hz, LED Indicator
