PHOENIX CONTACT
#2903300

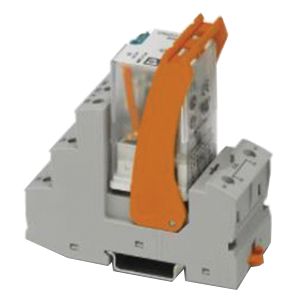

Industrial Relay Module, 250 VAC/DC, 8.5 A, 24 VDC Coil
SKU
#
78037399690
Specifications
Type:
Industrial Relay Module
Mounting:
DIN Rail
Terminals:
Screw
Voltage:
250V AC/DC
Amps:
8.5A
Coil Type:
Non-Latching
Coil Volts:
24 VDC
Coil Current:
60 mA
Contact Configuration:
3PDT, 3 Form C
Contact Material:
AgNi
Indicators:
Yellow LED
Poles:
3
Contact Type:
Plug-in
Enclosure:
IP20
Release Time:
20 ms
Operate Time:
18 ms
Operating Temperature:
-40° to +60°C
Description
The pluggable electromechanical and solid state relays in the RIFLINE complete product range and the base are recognized and approved in accordance with UL-508.The relevant approvals can be called up at the individual components in question.
