LITTELFUSE
#FS162

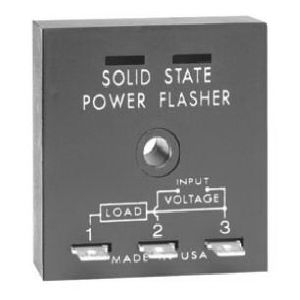

Solid State Flasher, 10A 230VAC 10-300 FPM
SKU
#
07945899349
Manufacturer Series:
FS200 Series
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Solid State Flasher
Input Voltage - nominal:
230V AC
Current - max. load:
3A
Current - Inrush:
10A
Flash Rate:
10-300 FPM
Terminal Type:
QC Tabs
Terminal Qty-Size:
2 x 0.25 in (6.3 mm)
Mounting:
Surface, Screw Mount
Load Types:
Incandescent, Resistive or Inductive
Enclosure Construction:
Encapsulated
Temperature Rating:
-20 to 60 Degree C (-4 to 140 Degree F)
Dimensions:
2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7mm)
On/Off Ratio:
50-pct
Input Voltage Range/Frequency:
230V AC, +/-15-pct, 50-60 Hz
Description
Fixed Operation Flashers: Type - Solid State Flasher; Input Voltage - nominal - 230VAC; Current - max. load - 3A; Current - inrush - 10A; Flash Rate - 10-300 FPM; Terminal Type - QC Tabs; Terminal Qty-Size - 2 x 0.25 in (6.3 mm); Mounting - Surface, Screw Mount; Load Types - Incandescent, Resistive or Inductive; Enclosure Construction - Encapsulated; Temperature Rating - -20 to 60 deg C (-4 to 140 deg F); Dimensions - 2.00 x 2.00 x 1.21 in (50.8 x 50.8 x 30.7 mm); On/Off Ratio - 50-pct; Input Voltage Range/Frequency - 230V AC, +/-15-pct, 50-60 Hz; Manufacturer Series - FS200 Series
