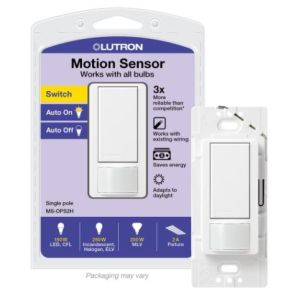

LUTRON
#MS-OPS2H-WH
Maestro Switch, Occupancy Sensor; Infrared; 120/277V; 180 deg; 1P; White
SKU
#
02755798313
Specifications
Type:
Occupancy Sensor Switch
Sensor:
Passive Infrared
Voltage:
120/277V
Load Type:
Incandescent, Halogen, ELV, MLV, CFL, LED, Magnetic Fluorescent, Electronic Fluorescent and Fan
Switch Operation:
Auto ON/OFF, Manual ON/OFF
Field of View - deg:
180 deg
Coverage - area:
Up to 900 sq. ft.
Color:
White
Circuit:
1-Pole
Wiring:
Wire Leads: Line, Load, Neutral, Ground
Mount:
Wall
Current Draw:
2A
Description
For lights controlled from one location. Turns the lights on when you enter a room and off when you leave. Works with all bulbs. Programmable time-out of lights - 1, 5, 15 or 30 minutes.
Additional Info: For lights controlled from one location. Programmable time-out of lights - 1, 5, 15 or 30 minutes.
