EATON CROUSE-HINDS SERIES
#ALC32

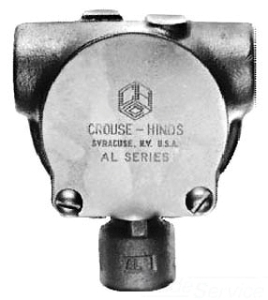

Ball Flexible Pendant Hanger, 1 in. Conduit, 2 Hubs, Pendant Mount, 125 lb, 3/4 in. Stem
SKU
#
78227403285
Manufacturer Series:
AL
Specifications
Country of Origin:
United States - Subject to change
Hanger Type:
Ball Flexible Pendant
Configuration:
Ball, Flexible Luminaire Hanger
Number of Hubs:
2
Conduit Size:
1 in.
Stem Size:
3/4 in.
Support Weight:
125 lb (56.6kg)
Mounting:
Pendant
Explosion Proof Certified:
Yes
Material:
Feraloy, Malleable Iron, Steel Sheet
Description
Conduit Body Light Fixture Hangers: Hanger Type - Ball Flexible Pendant; Configuration - Ball, Flexible Luminaire Hanger; Number of Hubs - 2; Conduit Size - 1 in.; Stem Size - 3/4 in.; Support Weight - 125 lb (56.6kg); Mounting - Pendant ; Explosion Proof Certified - Yes; Material - Feraloy, Malleable Iron, Steel Sheet; Additional Information - Class 1, Div. 2, Groups A, B, C, D, Swing Angle: 20 deg; Manufacturer Series - AL
Additional Info: Class 1, Div. 2, Groups A, B, C, D, Swing Angle: 20 deg
