LUTRON
#EHDT832GU310

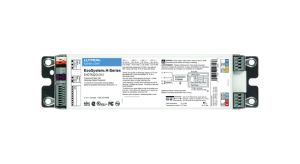

EcoSystem™ Digital Ballast, T8/U-Bend Lamp, 32W, 120/277VAC 50/60 Hz
SKU
#
02755744358
Manufacturer Series:
H
Specifications
Ballast Type:
Digital Fluorescent Ballast
Lamp Type:
T8/U-Bend
Lamp Watts:
32W
Number of Lamps:
3
Lamp Starting Method:
Programmed Rapid Start
Voltage:
120/277V AC 50/60Hz
Power Factor:
Greater Than 0.95
Ballast Factor:
1.17
ANSI Code:
ANSI C82.11, C62.41
Min Temp - deg F:
50 deg F
THD Max - Percent:
Less Than 10 Percent
Dimensions:
9.50 in. L x 2.38 in. W x 1.00 in. H
Description
EcoSystem H-Series digitally addressable ballasts provide a low cost, flexible solution for any space in any application. Industry leading dimming to less than 1 percent meets the needs of the most demanding applications. Individual control with the EcoSy
