SANYO DENKI
#9HV1248P1G001

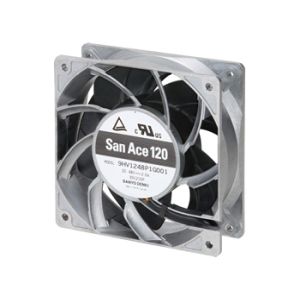

San Ace DC Tubeaxial Fan, 48 VDC, 96 w, 293 CFM, 120mm sq., 2 A
SKU
#
43975999182
Manufacturer Series:
120 9HV
Specifications
Type:
DC Tubeaxial Fan
Product Type:
Axial Fan
Size:
120 x 38mm
Voltage:
48V DC
Voltage - Nominal:
48V DC
Power Input:
96 w
Air Flow:
293 CFM
Dimensions:
LxW: 120 x 120mm
Depth:
38mm
Noise Level - dB:
75 dBA
Bearing:
Ball
Termination Type:
(4) Wire Leads
Material - Housing:
Aluminum
Material - Impeller:
Plastic
Temperature Max:
70°C
Temperature Min:
-20°C
Voltage Range:
36 to 60 VDC
Current Draw:
2 A
Motor:
11,500 RPM, Locked Rotor Burnout Protection, Reverse Polarity Protection
