SANYO DENKI
#109-213

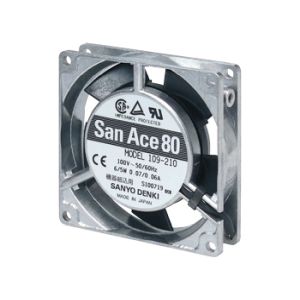

San Ace AC Tubeaxial Fan, 115 VAC 50/60Hz, 6/5 w, 0.44/0.53 CFM
SKU
#
43975999906
Manufacturer Series:
Series 80
Specifications
Type:
AC Tubeaxial Fan
Product Type:
AC Fan
Size:
80 x 20mm
Voltage:
115V AC
Voltage - Nominal:
115V AC 50/60Hz
Power Input:
6/5 w
Air Flow:
0.44/0.53 CFM
Dimensions:
LxW: 80 x 80mm
Depth:
20mm
Noise Level - dB:
26/31 dBA
Bearing:
Ball
Termination Type:
(2) Wire Leads
Material - Housing:
Aluminum
Material - Impeller:
Plastic
Temperature Max:
60°C
Temperature Min:
-30°C
Voltage Range:
103.5 to 126.5 VAC
Current Draw:
0.06/0.05 A
Motor:
2500/3000 RPM, Shaded Coil Motor, Locked Rotor Burnout, Reverse Polarity Protection
