KEYSTONE
#772
Anti-Vibration Grommet, 0.315 in. Mtg Hole Dia., Rubber
SKU
#
78382498406
Specifications
Type:
Grommet
Mounting Hole Diameter:
0.315 in. (8mm)
Grommet Diameter:
0.181 in. (4.6mm)
Max. Panel Thickness:
0.031 in. (0.8 mm)
Height - overall thickness:
0.209 in. (5.3 mm)
Head Diameter:
0.411 in. (11.2 mm)
Material:
Rubber
Color-Finish:
Blue
Material Specification:
EPDM
Description

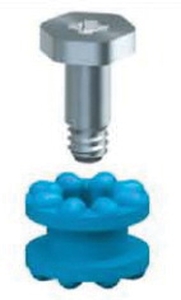

Anti-vibration grommets are designed for noise suppression in office or lab equipment. Additionally, they isolate sensitive instrumentation from unpredictable vibration and shock. The fingers of the grommets provide the flex needed to dampen unwanted noise and vibration. Specially designed shoulder screws are designed to provide the correct spacing.
