HEYCO PRODUCTS
#2417

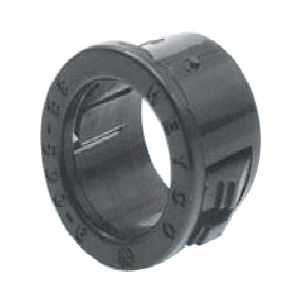

Hole Bushing Nylon Push-In One-Piece 2.250in
SKU
#
78311392329
Manufacturer Series:
Snap Bushing
Specifications
Type:
Hole Bushing
Mounting Hole Diameter:
2.25 in. (53.1mm)
Bushing Diameter:
1.86 in. (47.1mm)
Max. Panel Thickness:
0.25 in. (6.4mm)
Height - overall thickness:
0.72 in. (18.3mm)
Head Diameter:
2.480 in (63.1 mm)
Installation:
Push-In One-Piece
Material:
Nylon
Color-Finish:
Black
Temperature Rating:
125 Degree C (257 Degree F) Max.
Material Specification:
Nylon Type 6/6 UL Rated 94V-2
Listing Description:
SB 2.250-29
