EATON B-LINE SERIES
#B441Z-22ZN

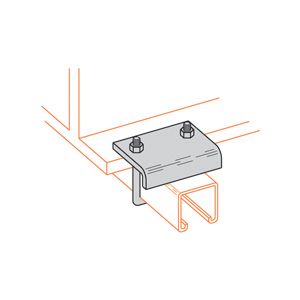

Channel to Beam, U-Bolt Right Angle Under Flange
SKU
#
78101103447
Specifications
Country of Origin:
United States - Subject to change
Clamp Type:
Channel to Beam
Channel Position:
Right Angle Under Flange
Channel Depth Max:
1-5/8 in.
Flange Thickness Max:
13/16 in.
Flange Width:
All
Load:
1200 lb. / Pr
Material:
Steel
Finish:
Electro-Plated
Description
Beam Clamps, Channel: Clamp Type - Channel to Beam, U-Bolt; Channel Position - Right Angle Under Flange; Channel Depth Max - in - 1-5/8; Flange Thickness Max - in - 13/16; Flange Width - All; Load - lb - 1200/Pr; Material - Steel; Finish - Electro-Plated
