NVENT ERICO
#CAVST1GA

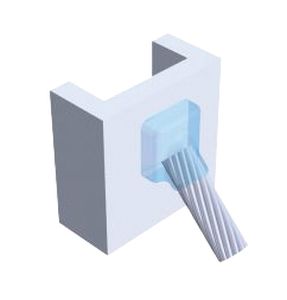

Welded Connection Mold, 0.75-3.50 in. Pipe, 6 sol
SKU
#
78285653277
Specifications
Country of Origin:
United States - Subject to change
Type:
Welded Connection Mold
Connection Configuration:
Angled Cable End to Vertical Pipe
Cable Size Solid:
6 sol
Pipe Size:
0.75-3.50 in. Pipe
Mold Connection Type:
Type VS
Description
nVent ERICO cadweld cathodic connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO Cadweld Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high stress pipes.
