RITTAL CORP
#WM201608N4

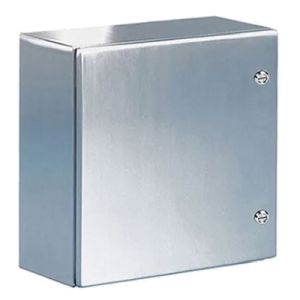

Wall Mount Enclosure, 16 in. W x 20 in. H x 8 in. D, Hinged
SKU
#
63988983182
Manufacturer Series:
Series WM
Specifications
Type:
Wall Mount Enclosure
NEMA:
NEMA 1, 3R, 4X, 12
Material:
Stainless Steel
Finish:
Brushed
Material Thickness:
16 ga
Material Specification:
AISI-304, 1.4301
Cover Mounting:
Hinged
Cover Latching:
(2) 1/4 Turn Latch
Height:
20 in.
Width:
16 in.
Depth:
8 in.
Mounting:
Panel, Plate
Optional Panel:
Panel Included
Description
These single door wall mount enclosures can be used for virtually any application. The WM Series ensures NEMA protection through a secure locking system, foamed in place gasket, and knife edge sealing surface. Features include a stainless steel body and d
