ABB INSTALLATION PRODUCTS
#K656LR-F0220

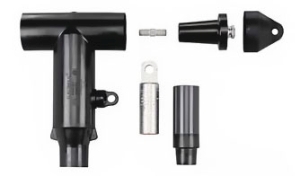

Thomas and Betts® Deadbreak Elbow 15/25kV
SKU
#
78378664781
Manufacturer Series:
Deadbreak 600
Specifications
Country of Origin:
United States - Subject to change
Type:
Deadbreak Elbow
Voltage Class:
15/25kV
Amps:
600A
AWG - Strand-Compr:
No. 2 str
AWG - Compact-Solid:
No. 1 compt/sol
Insulation Outside Diameter:
0.64 to 0.82 in. (16.2 to 20.8mm)
Connector:
Compression Lug AL
Testing:
Test Point
Contents:
Insulated Plug, Cap, Stud, Lug and Cable Adapter
Description
Utility UD Elbows: Type - Deadbreak Elbow; Voltage Class - 15/25kV; Amps - 600; AWG - Strand-Compr - No.2 str; AWG - Compact-Solid - No.1 compt/sol; Insulation O.D. - in - 0.64-0.82 in.; Insulation O.D. - mm - 16.2-20.8 mm; Connector - included - Compression Lug AL; Testing - Test Point; Contents - Insulated Plug, Cap, Stud, Lug and Cable Adapter; Manufacturer Series - 600 Deadbreak
