EATON
#S050-401
Current Metering Transformer, 400:5, ANSI B0.1
SKU
#
78211422340
Specifications
Country of Origin:
United States - Subject to change
Type:
Current Metering Transformer
Current Ratio - Amps:
400:5
Application:
Control Panels, Panelboards, Switchboards, Switchgear and Motor Control Centers
ANSI Relay Accuracy:
ANSI B0.1
Window Size:
1.56 in. Dia.
Description

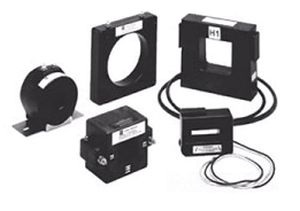

Eaton's low voltage current transformers are available in both solid core and split core designs. Engineered for electronic metering applications, all solid core designs and selected split core designs offer ANSI metering quality accuracy. The current transformer offering has a 5A secondary at the rated primary current.
