SIEMENS
#6EP13321LD10
Power Supply; DC; Switcher Design Mode; 100W; 1PH 100/240VAC Nominal Input; 24VDC 4.1A/24VDC Nominal Output; 100-240VAC; 85-264 VAC Operating; 22-28VDC; 0-4.1A Output; 2/1.1A Input; 86 Percent; Wall Mount
SKU
#
04089293405
Manufacturer Series:
PSU100D
Specifications
Type:
Stabilized DC Power Supply
Design Mode:
Switcher
Rating - Watts:
100W
Input VAC Nominal:
1PH 100/240VAC
Input VAC Range:
100-240VAC
Operating VAC Range:
85-264 VAC
Output VDC Nominal:
24V DC
Output Current Nominal:
4.1A/24VDC
Output VDC Range:
22-28VDC
Output Current Range:
0-4.1A
Input Current:
2/1.1A
Efficiency:
86 Percent
Mounting:
Wall Mount
Dimensions:
HxWxD: 6.22x3.82x1.50 in. (158.0x97.0x38.0 mm)
Rating/Application:
IP20
Description

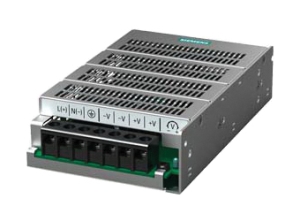

The attractively priced PSU100D regulated power supplies can be screwed directly onto the wall. The rugged aluminum enclosure with IP20 degree of protection can be variably mounted in different positions, even in applications with high temperatures and high shock and vibration requirements. The wide-range input enables connectivity to the most diverse supply networks worldwide and ensures reliable 12 V or 24 V supply even if there are large voltage fluctuations. Shortcircuit and overload protection as well as international certifications ensure problemfree and universal use.
