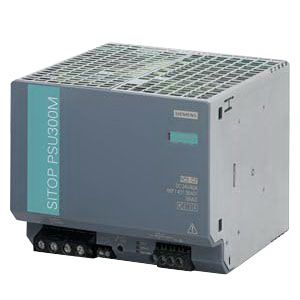

SITOP Power Supply, DC; Switcher; 500VAC Input; 24VDC Output; 960w

Description

DC Power Supplies: Type - DC Power Supply; Design Mode - Switcher; Rating - Watts - 960W; Input VAC Nominal - 3PH 500VAC; Input VAC Range - 400-500VAC; Operating VAC Range - 320-575VAC; Output VDC Nominal - 24VDC; Output Current Nominal - 40.0A; Output VDC Range - 24.0-28.8VDC; Output Current Range - 0-40.0A; Input Current - 2.60A/2.10A ; Efficiency - 92 Percent; Mounting - DIN Rail Mount; Dimensions - HxWxD: 4.92x5.90x4.92 in. (125.0x150.0x150.0mm); Rating/Application - Class 1 Div. 2, IP20; Additional Information - Operating Temperature: -25 to 70 deg C (-13 to 158 deg F); Manufacturer Series - SITOP PSU8200

Additional Info: Operating Temperature: -25 to 70 deg C (-13 to 158 deg F)
