SIEMENS
#6EP14372BA20

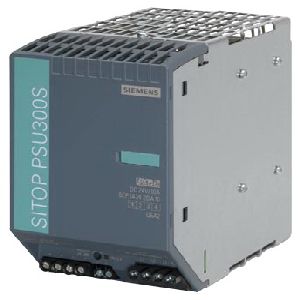

SITOP Power Supply, DC; Switcher; 500VAC Input; 24VDC Output; 960w
SKU
#
04089265663
Manufacturer Series:
PSU300S
Specifications
Country of Origin:
Romania - Subject to change
Type:
DC Power Supply
Design Mode:
Switcher
Rating - Watts:
960W
Input VAC Nominal:
3PH 500VAC
Input VAC Range:
400-500VAC
Operating VAC Range:
340-550VAC
Output VDC Nominal:
24V DC
Output Current Nominal:
40.0A
Output VDC Range:
24.0-28.0VDC
Output Current Range:
0-40.0A
Input Current:
2.00A/1.70A
Efficiency:
91.5 Percent
Mounting:
DIN Rail Mount
Dimensions:
HxWxD: 5.70x5.90x5.90 in. (145.0x150.0x150.0mm)
Rating/Application:
Class 1 Div. 2, IP20
Description
DC Power Supplies: Type - DC Power Supply; Design Mode - Switcher; Rating - Watts - 960W; Input VAC Nominal - 3PH 500VAC; Input VAC Range - 400-500VAC; Operating VAC Range - 340-550VAC; Output VDC Nominal - 24VDC; Output Current Nominal - 40.0A; Output VDC Range - 24.0-28.0VDC; Output Current Range - 0-40.0A; Input Current - 2.00A/1.70A ; Efficiency - 91.5 Percent; Mounting - DIN Rail Mount; Dimensions - HxWxD: 5.70x5.90x5.90 in. (145.0x150.0x150.0mm); Rating/Application - Class 1 Div. 2, IP20; Additional Information - Operating Temperature: 0 to 70 deg C (32 to 158 deg F); Manufacturer Series - SITOP PSU300S
Additional Info: Operating Temperature: 0 to 70 deg C (32 to 158 deg F)
