SIEMENS
#6EP13321SH43

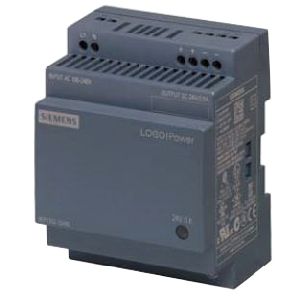

Power Supply, DC; Switcher; 240VAC Input; 24VDC Output; 60w
SKU
#
04089268831
Manufacturer Series:
LOGO!
Specifications
Country of Origin:
Austria - Subject to change
Type:
DC Power Supply
Design Mode:
Switcher
Rating - Watts:
60W
Input VAC Nominal:
1PH 240VAC
Input VAC Range:
85-264VAC
Operating VAC Range:
85-264VAC
Input VDC Range:
110-300VDC
Output VDC Nominal:
24V DC
Output Current Nominal:
2.5A/24VDC
Output Current Range:
0-2.5A
Efficiency:
88.0%
Mounting:
DIN Rail Mount
Dimensions:
HxWxD: 3.54x2.83x2.07 in (90.0x72.0x52.6mm)
Rating/Application:
Class II
Description
Additional Info: Operating Temperature: -20 to 70 deg C (-4 to 158 deg F)
