SIEMENS
#6EP12520AA01

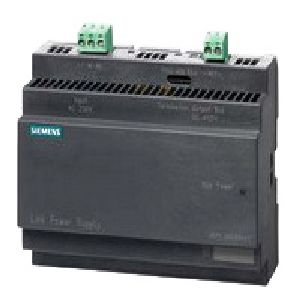

SITOP Power Supply, DC; Switcher; 230VAC Input; 41.50VDC Output
SKU
#
04089254953
Manufacturer Series:
6EP1
Specifications
Type:
DC Power Supply
Design Mode:
Switcher
Input VAC Nominal:
1PH 230VAC
Operating VAC Range:
195-264VAC
Output VDC Nominal:
41.50VDC
Output Current Nominal:
2.0A
Input Current:
0.7A
Efficiency:
75 percent
Dimensions:
HxWxD: 3.54x4.72x2.04 in. (90.0x120.0x52.0mm)
Rating/Application:
IP20
Description
DC Power Supplies: Type - DC Power Supply; Design Mode - Switcher; Input VAC Nominal - 1PH 230VAC; Operating VAC Range - 195-264VAC; Output VDC Nominal - 41.50VDC; Output Current Nominal - 2.0A; Input Current - 0.7A; Efficiency - 75 percent; Dimensions - HxWxD: 3.54x4.72x2.04 in. (90.0x120.0x52.0mm); Rating/Application - IP20; Additional Information - Operating Temperature: 0 to 40 deg C (32 to 104 deg F); Manufacturer Series - Sitop 6EP1
Additional Info: Operating Temperature: 0 to 40 deg C (32 to 104 deg F)
