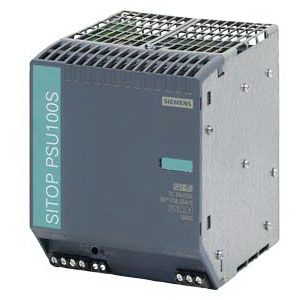

SITOP Power Supply, DC; Switcher; 230VAC Input; 24VDC Output; 480w

Description

DC Power Supplies: Type - DC Power Supply; Design Mode - Switcher; Rating - Watts - 480W; Input VAC Nominal - 1PH 230VAC; Input VAC Range - 120-230VAC; Input VAC Control - Auto Select; Operating VAC Range - 85-132/176-264VAC; Output VDC Nominal - 24VDC; Output Current Nominal - 20.0A; Output VDC Range - 24.0-28.0VDC; Output Current Range - 0-20.0A; Input Current - 7.50A/3.50A ; Efficiency - 90 Percent; Mounting - DIN Rail Mount; Dimensions - HxWxD: 5.70x4.52x5.90 in. (145.0x115.0x150.0mm); Rating/Application - Class 1 Div. 2, IP20; Additional Information - Operating Temperature: 0 to 70 deg C (32 to 158 deg F); Manufacturer Series - SITOP PSU100S

Additional Info: Operating Temperature: 0 to 70 deg C (32 to 158 deg F)
