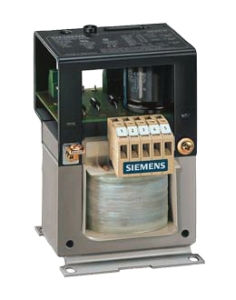

SIEMENS
#4AV20012EB000A
Power Supply; DC; 60W; 1PH 115/230/400VAC Nominal Input; 24VDC 2.5A/24VDC 60 deg C, 3A/24VDC 40 deg C Nominal Output; 115-415VAC; 120-415VAC Operating; 2.5-18A Output; Standard Rail or Screw Mount
SKU
#
04089257621
Manufacturer Series:
4AV
Specifications
Type:
Non-Stabilized DC Power Supply
Rating - Watts:
60W
Input VAC Nominal:
1PH 115/230/400VAC
Input VAC Range:
115-415VAC
Operating VAC Range:
120-415VAC
Output VDC Nominal:
24V DC
Output Current Nominal:
2.5A/24VDC 60 deg C, 3A/24VDC 40 deg C
Output Current Range:
2.5-18A
Mounting:
Standard Rail or Screw Mount
Rating/Application:
IP00
Description
Thanks to their rugged design, the 4AV devices feature a very high reliability. They are extremely resistant to the influence of external mains interferences and have a dampening effect on EMC. They are also suitable for the supply of capacitive loads as the connection of these consumers causes only minor voltage drops.
