PHOENIX CONTACT
#2904595

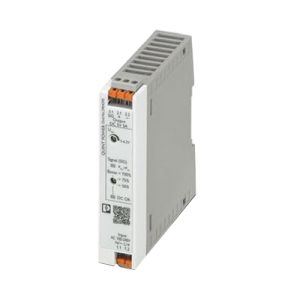

DC Power Supply, Switcher Design Mode, 5 VDC, 1 Output
SKU
#
78037399398
Manufacturer Series:
QUINT POWER
Specifications
Type:
DC Power Supply
Design Mode:
Switcher
Input VAC Range:
100 to 240 VAC 50 to 60Hz
Input VDC Range:
110 to 250 VDC
Number of Outputs:
1
Output Power:
25 w
Output VDC Nominal:
5 VDC
Output Current Nominal:
5 A
Output VDC Range:
5 to 6.2 VDC
Input Current:
0.37 A at 100 VAC, 0.3 A at 120 VAC, 0.17 A at 230 VAC, 0.16 A at 240 VAC
Efficiency:
Typical 87.4% at 120 VAC, 88.4% at 230 VAC
Mounting:
DIN Rail
Dimensions:
HxWxD: 106 x 22.5 x 90mm
Rating/Application:
IP20
Description
In the power range of up to 100 w, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low power range.
