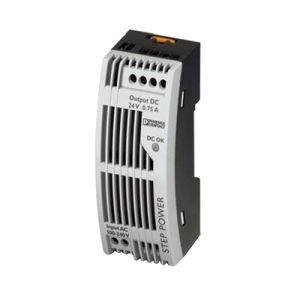

PHOENIX CONTACT
#2868622
DC Power Supply, Switcher Design Mode, 24 VDC, 1 Output
SKU
#
78037329652
Manufacturer Series:
STEP POWER
Specifications
Type:
DC Power Supply
Design Mode:
Switcher
Input VAC Nominal:
100/240 VAC 1 PH
Input VAC Range:
85 to 264 VAC 50 to 60Hz
Input VDC Range:
95 to 250 VDC
Number of Outputs:
1
Output Power:
18 w
Output VDC Nominal:
24 VDC
Output Current Nominal:
0.75 A
Output Current Range:
0.75 to 1.4 A
Input Current:
0.3 A at 120 VAC, 0.25 A at 230 VAC
Efficiency:
> 84%
Mounting:
DIN Rail
Dimensions:
HxWxD: 90 x 36 x 43mm
Rating/Application:
IP20, NEC Class 2
Description
The STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.
