EATON
#E5-324-E0402

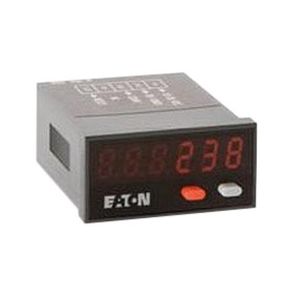

Digital Panel Meter 5 digit, 8 mm (0.31 in.) LED, Red
SKU
#
78668511474
Manufacturer Series:
E5-324-E
Specifications
Country of Origin:
Georgia - Subject to change
Type:
Digital Panel Meter
Inputs:
DC Voltage
Supply Voltage - Nominal:
10-30VDC
Display Type:
LED, Red
Display Size:
5 digit, 8 mm (0.31 in.)
Display Range:
-19999 to 19999
Input Type-Range:
Current: 4 to 20 mA, Voltage: 0 to 10V
Enclosure Rating:
IEC IP65 (front cover)
Description
Digital Meters - Various Inputs: Type - Digital Panel Meter; Inputs - DC Voltage; Supply Voltage - Nominal - 10-30VDC; Display Type - LED, Red; Display Size - 5 digit, 8 mm (0.31 in.); Display Range - -19999 to 19999; Input Type-Range - Current: 4 to 20 mA, Voltage: 0 to 10V; Enclosure Rating - IEC IP65 (front cover); Additional Information - Panel Opening HxW: 1.898 x 0.940 in. (48.0 x 24.0 mm); Manufacturer Series - E5-324-E
Additional Info: Panel Opening HxW: 1.898 x 0.940 in. (48.0 x 24.0 mm)
