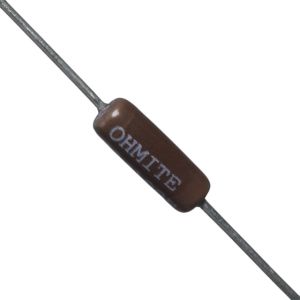

Wirewound Resistor, Fixed, 2200 Ohms 5W 330V

Description

Resistors - Single: Type - Wirewound Resistor, Fixed; Power Rating - 5W; Nominal Resistance - 2200 Ohms; Voltage - 330V; Tolerance - 5 pct; Terminal Type - Axial Lead; Power Rating Based on Temperature - 25 deg C; Temperature Coefficient - 30 ppm/deg C; Size - Body - 1.015"(25.8mm) Length x 0.276"(7.0mm) Diameter; Size - Terminals - 1.500"(38.1mm) Length x 0.031"(0.8mm) Diameter; Body Material - Ceramic, Vitreous Enamel Coated; Terminal Material - Solder Coated SnAgCu; Manufacturer Series - 20 Series
