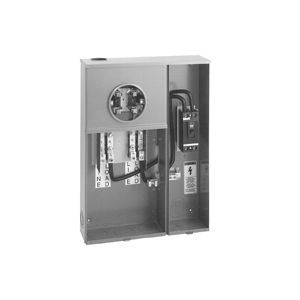

EATON B-LINE SERIES
#U224-MTB
Self-Contained Meter Main Breaker, 240V, 2P 10kA IC
SKU
#
78205159125
Specifications
Country of Origin:
United States - Subject to change
Socket Type:
Self-Contained Meter Main
Mains:
Breaker, 240V, 2P 10kA IC
Amps:
200A
Service:
1 Phase 3W OH/UG
Jaws:
4
Hub Provision:
Opening for AW Hub
Bypass Switch:
Test Block
Ring Type:
Ring Style
Mounting:
Surface
Material:
Steel
Dimensions:
HxWxD: 30 x 22 x 6 in.
Description
Socket, Meter Mains Combination: Socket Type - Self-Contained Meter Main; Mains - Breaker, 240V, 2P 10kA IC; Amps - 200; Service - 1 Phase 3W OH/UG; Jaws - 4; Hub Provision - Opening for AW Hub; Bypass Switch - Test Block; Ring Type - Ring Style; Mounting - Surface; Material - Steel; HxWxD - 30.00x22.00x6.00"
