EATON B-LINE SERIES
#U227-MTBL

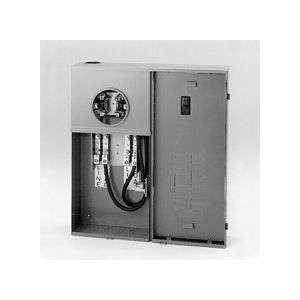

Self-Contained Meter Main Loadcenter Breaker, 240V, 3P 10kA IC
SKU
#
78205170146
Manufacturer Series:
MTBL/MTBPL
Specifications
Country of Origin:
United States - Subject to change
Socket Type:
Self-Contained Meter Main Loadcenter
Mains:
Breaker, 240V, 3P 10kA IC
Amps:
200A
Branch Circuits:
42
Spaces:
(24) 1"Space
Branch Breaker Type:
QP
Service:
3 Phase 4W OH/UG
Jaws:
7
Hub Provision:
Opening for AW Hub
Bypass Switch:
Test Block Bypass
Ring Type:
Ring Style
Mounting:
Surface
Material:
Steel
Dimensions:
HxWxD: 32 x 27 x 6 in.
Description
Socket, Load Center Combination: Socket Type - Self-Contained Meter Main Loadcenter; Mains - Breaker, 240V, 3P 10kA IC; Amps - 200A; Branch Circuits - 42; Spaces - (24) 1"Space; Branch Breaker Type - QP; Service - 3 Phase 4W OH/UG; Jaws - 7; Hub Provision - Opening for AW Hub; Bypass Switch - Test Block Bypass; Ring Type - Ring Style; Mounting - Surface; Material - Steel; HxWxD - 32.00x27.00x6.00"; Manufacturer Series - MTBL/MTBPL
