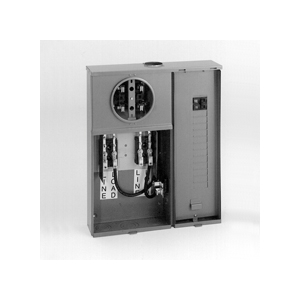

EATON B-LINE SERIES
#U214-MTBL
Self-Contained Meter Main Loadcenter Breaker, 240V, 2P 10kA IC
SKU
#
78205170126
Manufacturer Series:
MTBL/MTBPL
Specifications
Country of Origin:
United States - Subject to change
Socket Type:
Self-Contained Meter Main Loadcenter
Mains:
Breaker, 240V, 2P 10kA IC
Amps:
100A
Branch Circuits:
24
Spaces:
(12) 1"Space
Branch Breaker Type:
QP
Service:
1 Phase 3W OH/UG
Jaws:
4
Hub Provision:
Opening for AW Hub
Bypass Switch:
Test Block Bypass
Ring Type:
Ring Style
Mounting:
Surface
Material:
Steel
Dimensions:
HxWxD: 24 x 20 x 4.63 in.
Description
Socket, Load Center Combination: Socket Type - Self-Contained Meter Main Loadcenter; Mains - Breaker, 240V, 2P 10kA IC; Amps - 100A; Branch Circuits - 24; Spaces - (12) 1"Space; Branch Breaker Type - QP; Service - 1 Phase 3W OH/UG; Jaws - 4; Hub Provision - Opening for AW Hub; Bypass Switch - Test Block Bypass; Ring Type - Ring Style; Mounting - Surface; Material - Steel; HxWxD - 24.00x20.00x4.63"; Manufacturer Series - MTBL/MTBPL
