SIEMENS
#WMM31125J

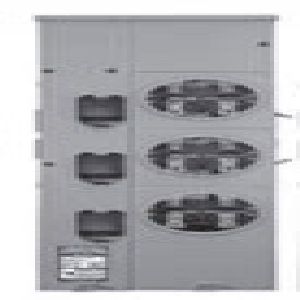

Meter Stack, 1 Phase 3W, 120/240Vac, 1200 A Bus, 125 A Socket, 3 Sockets, NEMA 3R, Ring
SKU
#
04089257094
Specifications
Socket Type:
Residential Meter Stack Module
Service:
1Phase3W
Voltage:
120/240V AC
Socket Amps:
125
Number of Sockets:
3
Socket Cover Style:
Ring
Socket Jaws:
5
Breaker Series:
QP, QPH, HQP, MP-T, MP-HT, MP-MT
Dimensions:
HxWxD: 43.31 x 13.09 x 8.09 in. (1100 x 332 x 205mm)
Description
Modular Meter Stacks: Socket Type - Residential Meter Stack Module; Service - 1Phase3W; Voltage - 120/240Vac; Socket Amps - 125; Number of Sockets - 3; Socket Cover Style - Ring; Socket Jaws - 5; Breaker Series - QP, QPH, HQP, MP-T, MP-HT, MP-MT; HxWxD - 43.31x13.09x8.09 in. (1100x332x205mm)
