EATON B-LINE SERIES
#1214213

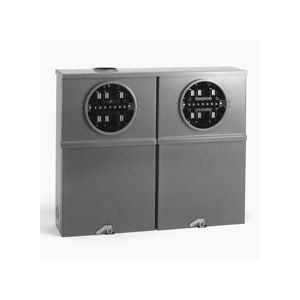

Transformer Rated Meter 3 Phase OH/UG
SKU
#
78205146060
Specifications
Country of Origin:
United States - Subject to change
Socket Type:
Transformer Rated Meter
Service:
3 Phase OH/UG
Amps:
20A
Voltage:
600V AC
Jaws:
13
Hub Provision:
Opening for AW Hub
Bypass Switch:
None
Ring Type:
Ring Style
Mounting:
Surface
Provisions:
Test Switch
Material:
Steel
Dimensions:
HxWxD: 20 x 24.38 x 4.63 in.
Description
Meter Sockets, Transformer Rated: Socket Type - Transformer Rated Meter; Service - 3 Phase OH/UG; Amps - 20; Voltage - 600V AC; Jaws - 13; Hub Provision - Opening for AW Hub; Ring Type - Ring Style; Mounting - Surface; Provisions - Test Switch; Material - Steel; HxWxD - 20.00x24.38x4.63"; Additional Information - (2) Meter positions, For use with separate CT enclosure
Additional Info: (2) Meter positions, For use with separate CT enclosure
