EATON
#UBH2R2332TCH

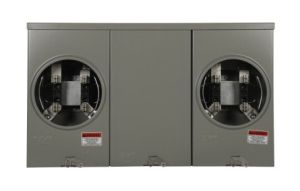

Cutler-Hammer® Meter Socket, 1 PH 3W OH/UG, 600VAC, 200A, 2 Meter
SKU
#
78211612714
Specifications
Country of Origin:
United States - Subject to change
Socket Type:
Meter Socket
Service:
1 PH 3W OH/UG
Meter Positions:
2
Main:
Lugs, 8-250 kcmil Load, 6-350 kcmil Line
Amps/Position:
200A
Voltage:
600V AC
Hub Provision:
Hub Opening 5x5 in., Large
Entry:
Top/Bottom
Ring Type:
Ringless
Mounting:
Surface
Provisions:
Horn Bypass
Dimensions:
14.13 in. H x 24.31 in. W x 5.38 in. D
