SIEMENS
#WP6511

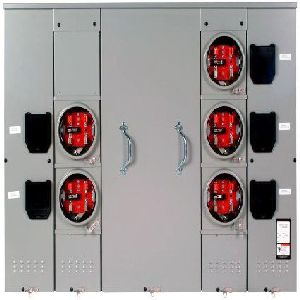

Uni-PAK Meter Pack, 1Ph3W, 120/240VAC, 600 A Bus, 125 A Socket, 5 Sockets, Indoor/Outdoor Enclosure
SKU
#
04089287527
Specifications
Socket Type:
Self-Contained Meter Pack
Service:
1Ph3W
Voltage:
120/240V AC
Bus Amps:
600A
Socket Amps:
125
Number of Sockets:
5
Socket Cover Style:
Ring
Socket Jaws:
5
Main Lugs:
(2) #2-600mcm
Breaker Series:
QP, QPH, HQP, MP-T, MP-HT, MP-MT
Enclosure Type:
Indoor/Outdoor
Dimensions:
HxWxD: 38.69 x 40 x 8.63 in. (983 x 1016 x 219mm)
Description
Meter Packs: Socket Type - Self-Contained Meter Pack; Service - 1Ph3W; Voltage - 120/240Vac; Bus Amps - 600; Socket Amps - 125; Number of Sockets - 5; Socket Cover Style - Ring; Socket Jaws - 5; Main Lugs - (2) #2-600mcm; Breaker Series - QP, QPH, HQP, MP-T, MP-HT, MP-MT; Enclosure Type - Indoor/Outdoor; HxWxD - 38.69x40.00x8.63 in. (983x1016x219mm); Manufacturer Series - Uni-PAK
