SIEMENS
#WP4412

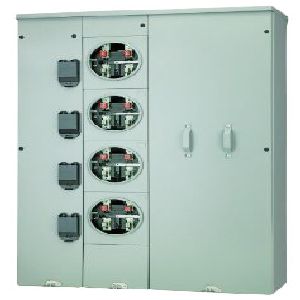

Uni-PAK Meter Pack, 1Ph3W, 120/240VAC, 400 A Bus, 225 A Socket, 4 Sockets, Indoor/Outdoor Enclosure
SKU
#
04089287551
Specifications
Socket Type:
Self-Contained Meter Pack
Service:
1Ph3W
Voltage:
120/240V AC
Bus Amps:
400A
Socket Amps:
225
Number of Sockets:
4
Socket Cover Style:
Ring
Socket Jaws:
4
Main Lugs:
1/0-750mcm CU-AL/(2) 1/0-250mcm AL/(2) 1/0-3/0AWG CU
Breaker Series:
QP, QPH, HQP, MP-T, MP-HT, MP-MT, QS, QSH, QSHH, HQS, HQSH
Enclosure Type:
Indoor/Outdoor
Dimensions:
HxWxD: 47.69 x 28.53 x 8.63 in. (1211 x 725 x 219mm)
Description
Meter Packs: Socket Type - Self-Contained Meter Pack; Service - 1Ph3W; Voltage - 120/240Vac; Bus Amps - 400; Socket Amps - 225; Number of Sockets - 4; Socket Cover Style - Ring; Socket Jaws - 4; Main Lugs - 1/0-750mcm CU-AL/(2) 1/0-250mcm AL/(2) 1/0-3/0AWG CU; Breaker Series - QP, QPH, HQP, MP-T, MP-HT, MP-MT, QS, QSH, QSHH, HQS, HQSH; Enclosure Type - Indoor/Outdoor; HxWxD - 47.69x28.53x8.63 in. (1211x725x219mm); Manufacturer Series - Uni-PAK
