EATON
#1MP4206RRLB1

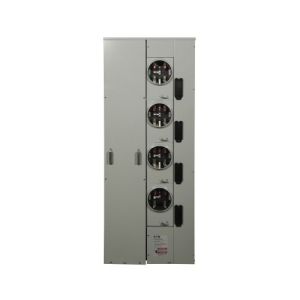

Cutler-Hammer® Meter Pack, 1 PH 3W, 120/240 VAC, 600 A Bus, 4 Sockets
SKU
#
78211600756
Specifications
Socket Type:
Self-Contained Group Metering Pack
Service:
1 PH 3W
Voltage:
120/240V AC
Bus Amps:
600 A
Socket Amps:
200 A
Number of Sockets:
4
Socket Cover Style:
Ringless with Horn Bypass
Socket Jaws:
5
Main Lugs:
Not Included
Breaker Series:
CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM
Enclosure Type:
Indoor/Outdoor, NEMA 3R
Dimensions:
LxWxH: 66 x 26 x 8-1/4 in.
