LEVITON
#LP815-LMC

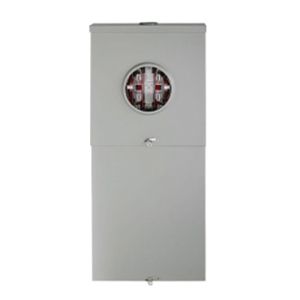

Load Center Meter, 150 A, 120/240 VAC, 1 PH, 8 Circuits
SKU
#
07847782237
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Load Center Meter Combo Ringless Lever Bypass w/Main Breaker and Feed-Through Lug
Breaker Mounting:
Plug-on
Phase:
1
Rating - Volts:
120/240 VAC
Mains:
Breaker
Main Breaker:
22 kA IR
Rating - Amps:
150 A
Number of Circuits:
8
Number of Spaces:
8
Enclosure:
NEMA 3R Outdoor
Main Wire:
4 to 2/0 AWG CU/AL, 6 to 350 MCM (Supply)
Enclosure Size - Dimensions:
HxWxD: 36 x 16.6 x 5.2 in.
Description
Leviton meter main load centers provide a meter socket, main breaker, and 8 branch breaker spaces in one easy to install unit. It features feed-thru lugs to wire to a sub-panel. Hydraulic magnetic trip technology allows circuit breakers to operate as inte
