MOLEX
#8R3A00A18A120

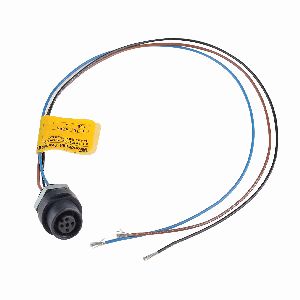

Micro-Change Female, Micro Receptacle Straight Single Keyway 250VAC/DC 4A
SKU
#
78678824044
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Female, Micro Receptacle
Connector Mating Size:
M12x1
Keyway:
Single Keyway
Angle:
Straight
Poles:
3-Pole
Wire-Pin Colors:
Black, Brown, Blue
Voltage:
250V AC/DC
Amps:
4A
Material:
Black Anodized Aluminum
Termination Type:
Wire Leads
Termination Size:
12.00 in 22 AWG
Mounting Size:
1/4 in. -18 NPT Mount
Application/Rating - NEMA:
NEMA 6
Application/Rating - IEC:
IP 67
