EATON CROUSE-HINDS SERIES
#MR4E4BC100A

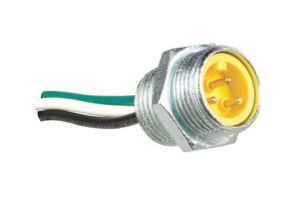

Male Receptacle, Single, Straight, 4 P, 600 V, 10 A
SKU
#
66227533224
Manufacturer Series:
Mini-Line
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Male Receptacle
Keyway:
Single
Angle:
Straight
Poles:
4P
Wire-Pin Code:
US Color Code
Wire-Pin Colors:
Black, White, Red, Green
Voltage:
600V
Amps:
10A
Material:
Die Cast Zamak 5 Zinc
Termination Size:
L: 10 in., 16 AWG
Mounting Size:
1/2-14 NPT
Application/Rating - NEMA:
NEMA 1, 3, 4, 6P, 13
Application/Rating - IEC:
IP68
