BELDEN
#600000197

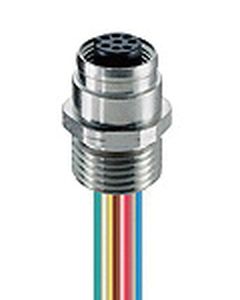

Receptacle Connector, M12x0.5, Single, 5P, 60 V, 4 A
SKU
#
49100076621
Specifications
Type:
Micro Receptacle Connector
Connector Mating Size:
M12x0.5
Keyway:
Single
Poles:
5P
Wire-Pin Colors:
Brown, White, Blue, Black, Green/Yellow
Voltage:
60V
Amps:
4A
Material:
Nickel Plated Brass Housing, Gold Over Nickel Plated Brass Contact, Polyurethane Insert
Termination Size:
24 to 22 AWG
Mounting Size:
PG9 Mount
Application/Rating - NEMA:
NEMA 6P
Application/Rating - IEC:
IP67
