MOLEX
#803P602

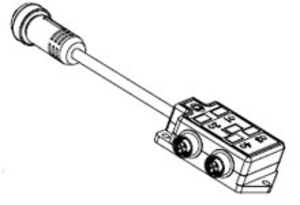

Side Mount Outlet Male Connector Micro Single Keyway
SKU
#
78678824064
Manufacturer Series:
120115
Specifications
Country of Origin:
Mexico - Subject to change
Base Type:
Side Mount Outlet
Outlet Style:
Micro Single Keyway
Outlet Configuration:
5 Pole 6 Pin PNP
Outlet Quantity:
4
Inlet Type:
Male Connector
Rating - Voltage:
10 to 30V DC
Rating - Current:
4A per Port
Inlet Mating Size:
1"-16UN
Outlet Mating Size:
M12x1
Application/Rating - NEMA:
NEMA 6
Application/Rating - IEC:
IEC IP 67
Material:
PBT
Dimensions:
HxWxL: 0.98 x 1.75 x 4.08 in. (25 x 44.5 x 104mm)
Temperature Rating:
-20 to 90 Degree C
Description
Quick Connect Multi-Port Base Units: Base Type - Side Mount Outlet; Outlet Style - Micro Single Keyway; Outlet Configuration - 5 Pole 6 Pin PNP; Outlet Quantity - 4; Inlet Type - Male Connector; Rating - Voltage - 10-30V DC; Rating - Current - 4A per Port; Inlet Mating Size - 1"-16UN; Outlet Mating Size - M12x1; Application/Rating - NEMA - NEMA 6; Application/Rating - IEC - IEC IP 67; Material - PBT; Size - HxWxL - 0.98x1.75x4.08 in (25.00x44.50x104.00mm); Temperature Rating - -20 to 90 deg C; Additional Information - Contacts: Gold over Nickel; Manufacturer Series - 120115
Additional Info: Contacts: Gold over Nickel
