MOLEX
#409P403

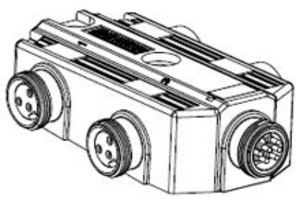

Mini-Change® Distribution Box, Side Mount, 3 Pin Mini Male Inlet
SKU
#
78678861605
Manufacturer Series:
130060
Specifications
Country of Origin:
Mexico - Subject to change
Base Type:
Side Mount Outlet
Outlet Style:
Mini Single Keyway
Outlet Configuration:
3 Pole 4 Pin
Outlet Quantity:
4
Inlet Type:
Cable
Rating - Voltage:
600V AC/DC
Rating - Current:
7A
Inlet Mating Size:
7/8"-16UN
Outlet Mating Size:
7/8"-16UN
Application/Rating - NEMA:
NEMA 6
Application/Rating - IEC:
IEC IP 67
Material:
PBT
Dimensions:
2.3 x 4.8 in. (58.42 x 121.92mm)
Temperature Rating:
-25 to 90 Degree C
Description
Additional Info: Contacts: Gold over Nickel
