EATON
#CBDR4P05

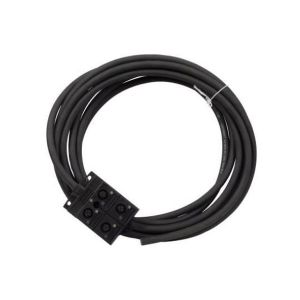

Cutler-Hammer® Multi-Connector Block, 30 VDC, 12 A, Cable Inlet
SKU
#
78211615242
Manufacturer Series:
Global Plus
Specifications
Base Type:
Multi-Connector Block
Outlet Style:
Micro Single Keyway
Outlet Configuration:
5 Pole PNP
Outlet Quantity:
4
Inlet Type:
Cable
Inlet Cable Length:
192 ft.
Rating - Voltage:
30V DC
Rating - Current:
12 A
Inlet Mating Size:
M12
Application/Rating - NEMA:
NEMA 6P
Application/Rating - IEC:
IEC IP67
Material:
Plastic
Dimensions:
LxWxH: 2.13 x 0.97 x 196.8 in.
Temperature Rating:
-13° to +167°C
Description
The basic multi-connector block from Eaton's electrical sector is an easy way to quickly connect sensors to a control system. Using a variety of double ended, industry standard M12 micro connector cables, a system can be wired up in minutes, therefore sav
