PHOENIX CONTACT
#1542910

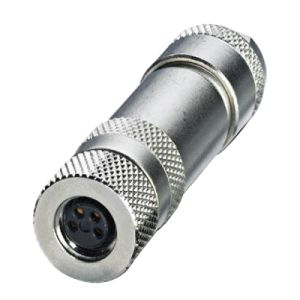

Universal Socket, Straight, 4 P, 30 VAC/DC, 4 A at 40°C
SKU
#
78037393426
Specifications
Connector Type:
Universal Socket
Angle:
Straight
Poles:
4
Terminals:
Screw
Voltage:
30V AC/DC
Amps:
4 A at 40°C
Material:
CuZn Contact, Nickel Plated Die Cast Zinc Knurls and Grip, NBR Sealing
Connector Mating Size:
M8x1
Cable Range:
26 to 20 AWG (without Ferrule)
Application/Rating - IEC:
IEC-IP67
