PHOENIX CONTACT
#1553174

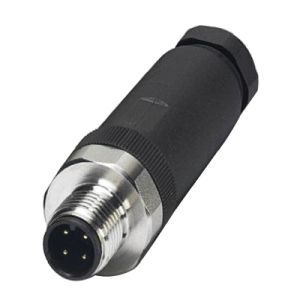

Universal Plug, Straight, 4 P, 250 VAC/DC, 4 A at 40°C
SKU
#
78037311788
Specifications
Connector Type:
Universal Plug
Angle:
Straight
Poles:
4
Terminals:
Screw
Voltage:
250V AC/DC
Amps:
4 A at 40°C
Material:
CuZn Contact, Stainless Steel 1.4404 Knurls, Polyamide Grip, NBR Sealing
Connector Mating Size:
M12x1
Cable Range:
24 to 18 AWG (without Ferrule), 26 to 20 AWG (with Ferrule)
Application/Rating - IEC:
IEC-IP65, IP67, IP69K
