PHOENIX CONTACT
#1556252

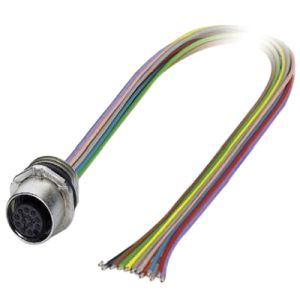

Sensor/Actuator Socket, Single, 12 P, 30 V, 1.5 A at 40°C
SKU
#
78037311865
Specifications
Connector Type:
Sensor/Actuator Socket
Keyway:
Single
Poles:
12
Voltage:
30V
Amps:
1.5 A at 40°C
Material:
CuSn Contact, Nickel Plated Die Cast Zinc Knurls and Grip, FKM Sealing
Connector Mating Size:
M12
Cable Range:
26 AWG
Application/Rating - IEC:
IEC-IP67
