MOLEX
#105000A07M100

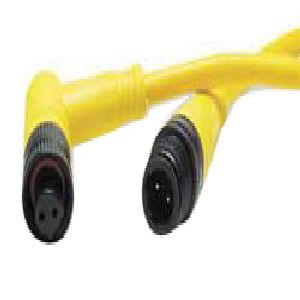

Mini-Change® Cordset, Single-End; Single Keyway; Straight; 32.81 ft. cable
SKU
#
78678842612
Specifications
Cable Length - ft:
32.81 ft.
Connector Type:
Female
Cable Length - meters:
10.00 m
Voltage:
300V
Connector Mating Size:
7/8 in.-16 UN
Assembly Type:
Single End Cordset
Keyway:
Single Keyway
Angle:
Straight
Poles:
5-Pole
Amps:
4A
Connector Material:
PVC Body, Epoxy Coated Zinc Nut
Cable Type:
Yellow PVC, 18 AWG
Application/Rating - IEC:
IP 67
Description
Additional Info: Operating Temperature: -20 to 105 deg C (-4 to 221 deg F)
