MOLEX
#803001A09M100

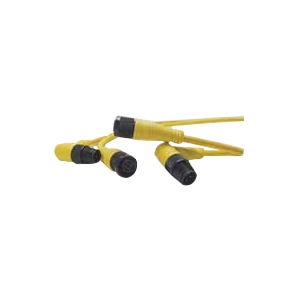

Micro-Change Cordset, Single-End; Single Keyway; 90 deg; 32.8 ft. cable
SKU
#
78678875947
Specifications
Cable Length - ft:
32.8 ft.
Country of Origin:
United States - Subject to change
Connector Type:
Female Micro DC
Cable Length - meters:
10.0 m
Assembly Type:
Single End Cordset
Keyway:
Single Keyway
Angle:
90 Degree
Poles:
3-Pole
Wire-Pin Colors:
Brown, Blue, Black
Voltage:
250V AC/DC
Amps:
4A
Connector Material:
PVC Body, Epoxy Coated Zinc Nut
Cable Type:
Yellow PVC, 22 AWG
Connector Mating Size:
M12x1
Application/Rating - NEMA:
NEMA 6P
Application/Rating - IEC:
IP 68
