MOLEX
#884030D01M050

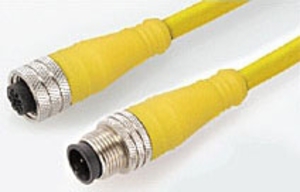

Micro-Change Cordset, Double-end; Single Keyway; Straight; 16.4 ft. cable
SKU
#
78678824192
Specifications
Cable Length - ft:
16.4 ft.
Cable Length - meters:
5.0 m
Assembly Type:
Double End Cordset
Connector Type:
Male Micro - Female Micro
Keyway:
Single Keyway
Angle:
Straight
Poles:
4-Pole
Wire-Pin Code:
DC Color Code
Wire-Pin Colors:
Brown, White, Blue, Black
Voltage:
250V AC/DC
Amps:
4A
Connector Material:
PVC Body, Epoxy Coated Zinc Nut
Cable Type:
Yellow PVC, Metallic Shield, 22 AWG
Connector Mating Size:
M12x1
Application/Rating - NEMA:
NEMA 6P
Application/Rating - IEC:
IP 68
Description
Additional Info: Operating Temperature: -20 deg C to 105 deg C (-4 to 221 deg F)
