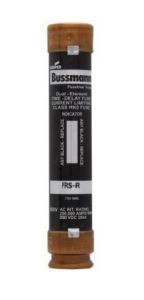

EATON BUSSMANN SERIES
#FRS-R-45ID
Time Delay Fuse, Time Delay, Dual Element, Current Limiting
SKU
#
05171220463
Manufacturer Series:
FRS-R
Specifications
Country of Origin:
Mexico - Subject to change
Fuse Type/Class:
Class RK5
Characteristics:
Time Delay, Dual Element, Current Limiting
Interrupting Rating:
200kA IR at 600 VAC, 20kA IR at 250 VDC
Voltage:
600V AC / 250V DC
Amps:
45A
Length Overall:
5-1/2 in.
Diameter:
1.06 in.
Connection:
Ferrule
Indicators:
Open Fuse Indication
